Motofil Robotic Welding Cells

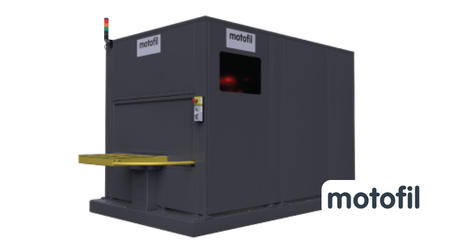

Welpro
Compact welding cell specifically designed for the production of small volumes of parts.
| Max. payload capacity [kg]: | 2 x 75 |
| Number of axes: | 1 |
| Axis rotation (manual) [°]: | 0 -180 |
| Loading stations: | 2 |
| Table size [mm]: | 680 x 500 |
.png "Solution de soudage MIG / MAG robotisée flexible motofil")

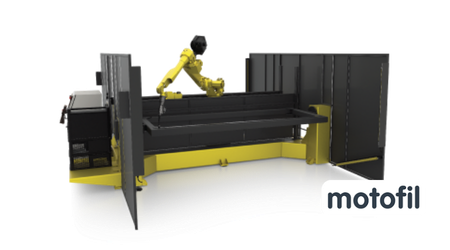

Monobloc System
Flexible robotic MIG/MAG welding solution for low production volumes and multiple part references. A single integrated structure houses all system components, enabling quick installation (set up in under 8 hours) and easy relocation.
| Max. payload capacity [kg]: | 600 |
| Max. welding diameter [mm]: | 1200 |
| Distance between points [mm]: | 2000 - 4000 |
| Loading stations: | 2 |

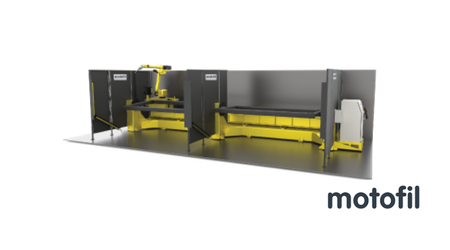

Inline Monobloc System
Suitable for the simultaneous production of two or more fully differentiated products. Flexible welding solution for low production volumes and multiple part references (in-line configuration).
| Max. payload capacity [kg]: | 600 |
| Max. welding diameter [mm]: | 1200 |
| Distance between points [mm]: | 2000 - 3000 |
| Loading stations: | 2 |

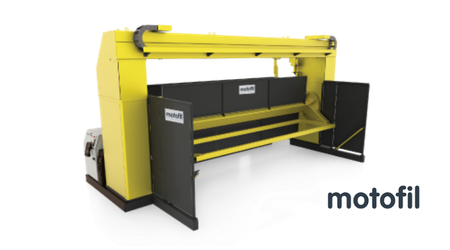

M-Lean Ferris Wheel Positioner
Compact robotic MIG/MAG welding solution designed to weld large metal parts in a single station. This robotic welding cell features a small footprint and is built on a complete steel structure for easy installation and transport. The robots are inverted to provide improved access to welding points.
| Max. payload capacity [kg]: | 600 |
| Max. welding diameter [mm]: | 1000 |
| Distance between points [mm]: | 2000 - 3000 |
| Loading stations: | 2 |

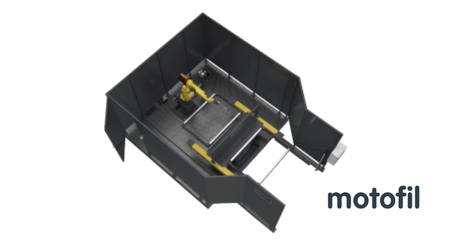

3-Axis H-Table Positioner
MIG/MAG welding of small metal parts with low duty cycles (high production volume). This solution is designed to support multiple welding processes (MIG / TIG / SPOT).
This equipment is ideal for the production of: automotive parts, bicycles, fire extinguishers, and complex-shaped metal components, among others.
| Max. payload capacity [kg]: | 300 |
| Max. welding diameter [mm]: | 1000 |
| Distance between points [mm]: | 1500 |
| Loading stations: | 2 |

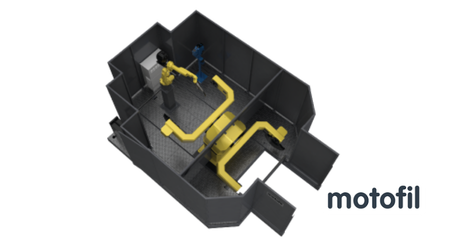

5-Axis H-Table Welding System
Its 5-axis rotational configuration provides greater freedom of movement, allowing improved access to welding points. Designed for high production volumes and more efficient cycle times.
| Max. payload capacity [kg]: | 300 |
| Max. welding diameter [mm]: | 1000 |
| Distance between points [mm]: | 1500 |
| Loading stations: | 2 |

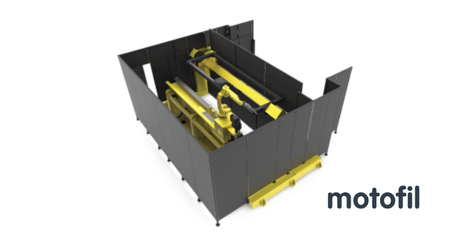

Ferris Wheel Positioner
Designed for welding large parts. The synchronized axes can be fully coordinated with the robot’s movements, enabling increased welding speed.
Allows integration of up to four robots, including handling robots for part positioning without the need for tooling or fixtures.
| Max. payload capacity [kg]: | 600 |
| Max. welding diameter [mm]: | 1200 |
| Distance between points [mm]: | 2000 - 3000 |
| Loading stations: | 2 |

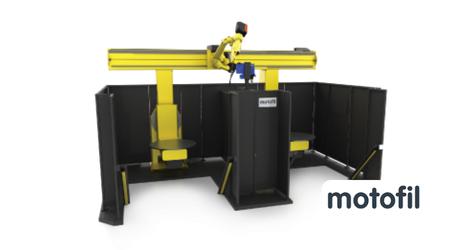

Classic Double Sky-Hook System
Complete frame in a compact design with two workstations. Built on a single structure for easy installation and transport. The combination of an inverted robot and orbital positioners optimizes access to welding points.
| Max. payload capacity [kg]: | 1000 |
| Max. welding diameter [mm]: | 1600 | 1800 | 2200 |
| Loading stations: | 2 |
Frequently Asked Questions
Motofil’s pre-engineered systems enable rapid deployment. Depending on the project, a cell can be delivered and fully operational in as little as 14 weeks, helping accelerate return on investment.
Yes. Thanks to interchangeable jig systems, it is possible to switch production quickly. Some cells allow you to change from one part to another multiple times per day, offering a high level of flexibility.
No. Once the cell is programmed, an operator can oversee production. This makes it possible to rely on a more accessible workforce while maintaining high welding quality.
Yes. The cells are designed for quick integration into existing operations. Revtech also provides local support for custom jig design to facilitate seamless integration.
